Network Cable

Network cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by TIA/EIA568C.2 and IEC 60603-7-4 standards.

As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. Network cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

The Category 5E cable, an enhanced version of Category 5, adheres to more stringent standards specified by TIA/EIA-568C.2 and IEC 60603-7-4. These cables are made using 24 gauge (AWG) copper wires with about three twists per inch enabling them to transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 100 MHz. They are suitable for 10BASE-T, 100BASETX Fast Ethernet and 1000BASE-T Gigabit Ethernet.

•   4 Pairs Unshielded Twisted Pair (UTP) Cable
•   Conductor Metal: Solid Bare Copper
•   Color Code: Blue/ Grey
•   Conductor Diameter: 0.5mm Nominal, 24 AWG
•   Insulation Diameter: 0.860 Nominal, Insulation Material: HD-PE
•   Jacket Material: PVC UL94V-0
•   Cable Diameter: 5.0mm nominal

•   Verified compliant with TIA/EIA-568C.2 standards by ETL
•   CUL listed
•  RoHs

•   Mutual Capacitance: 5.6nF/100m nomina
•   Characteristic Impedance: 100O±15%
•   Nominal Velocity of Propagation: 69%
•   Conductor Resistance: < 9.80O/100m
•   Resistance Unbalance: 5 % Max
•   Capacitance Unbalance: 330pF/100m
•   Delay Skew: < 45nS
•   Bending Radius: < 4 X Cable Diameter (mm) at –20°C ± 1°C
•   Pulling Force: 100 N
•   Temperature Range: -20°to +70°C

APPLICATION

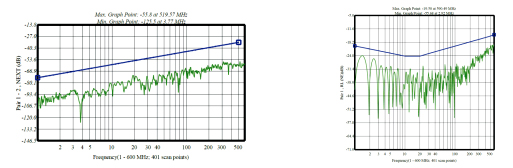

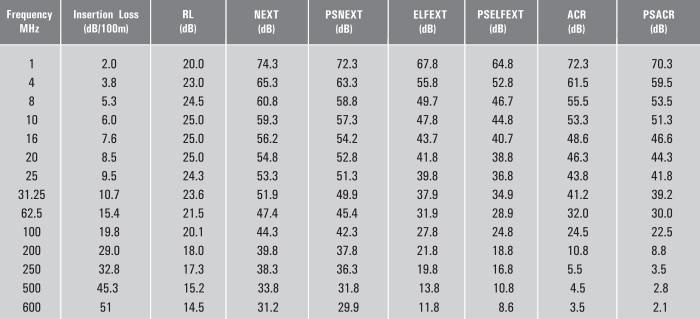

Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 baseT) standard. Performance verified up to 600 Mhz This cable well exceeds the requirements of ANSIITIA-568-C.2 category6 ISO 11801 Class E

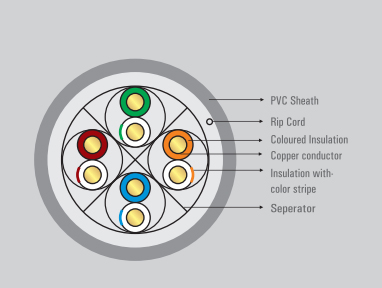

•   Conductor: 23 AWG Solid bare Copper (4 pair)
•   Insulation: High Density Polyethylene
•   Pairs: 2 Insulated conductors twisted together
•   Sheath: FR-PVC Insulation thickness 0.2mm nominal
•   Cable Diameter: 6.1 mm nominal
•   Cable wt per Box: 13.6 Kgs nominal
•   Printing: Each meter printed with sequential Length Counter

•   Characteristic Impedance: 100 ± 150
•   Conductor Resistance: 9.38 fl 1100m
•   Insulation Resistance: 100M Q
•   Mutual Capacitance: < 5.6nF1100m
•   Resistance Unbalance: 5% Max
•   Capacitance Unbalance: 330pF1100m
•   Delay Skew: < 45nS
•   NVP (%): 69%
•   Operating Voltage: 72V
•   Dielectric Strength: 1.0KV dc or 0.75KV ac for 1min

•   Bending Radius: < 25.4mm at -20°C ± 1 °C
•   Pulling Force: 11.5 Kg
•   Operating Temperature Range: -20°C to +70°C
•   Storage Temperature Range: 0°C to + 50°C

  Compatible with all common systems according to TIAIEIA 568-C.2 and ISOIIEC 11801 Class E

  Reels of guaranteed 305m Length
